Rubber Compounding Process: From Raw Materials to Final Compound
For OEM engineers and product designers working with elastomeric components, specifying a rubber part is rarely as simple as selecting a material from a catalog. Seals must withstand dynamic loads and temperature cycles. Bushings must damp vibration without excessive creep. Hoses must resist oils, ozone, and pressure while maintaining flexibility.At the core of all these performance requirements lies the rubber compounding process—the engineering-driven transformation of raw elastomers and additives into a functional, processable compound tailored to a specific application.The challenge for engineers is balancing competing requirements:
- Mechanical strength vs. flexibility
- Chemical resistance vs. processability
- Compression set vs. cost
- Heat resistance vs. cure speed
Understanding how rubber compounds are formulated and manufactured helps OEM teams make better design decisions, avoid costly iterations, and improve long-term reliability.This article explains the rubber compounding process from an engineering perspective, covering materials, processing stages, manufacturing considerations, and best practices used in modern industrial rubber and automotive applications.Why the Rubber Compounding Process MattersAlthough rubber components may appear simple, their performance often has a direct impact on the reliability of an entire system. A seal, hose, gasket, vibration isolator, or molded component that fails prematurely can lead to equipment downtime, fluid leakage, increased maintenance costs, and reduced product performance.For this reason, the rubber compounding process plays a critical role in product development. It establishes the foundation for achieving consistent material properties and ensuring that the final component performs as intended throughout its service life.In industrial and automotive environments, rubber materials are frequently exposed to temperature fluctuations, mechanical loads, environmental conditions, and extended operating cycles. Achieving reliable performance under these conditions requires a controlled and repeatable manufacturing process.
Technical Background: What Is a Rubber Compound?
A rubber compound is not simply “rubber.” It is a carefully engineered material created by combining multiple ingredients that work together to achieve specific performance characteristics.A typical compound may include:
- Base elastomer (polymer)
- Fillers
- Plasticizers or processing oils
- Curing agents
- Accelerators
- Activators
- Antidegradants
- Specialty additives
The formulation determines the compound’s mechanical properties, chemical resistance, processing behavior, and overall cost.In custom rubber manufacturing, compounds are developed around performance requirements rather than standardized material grades. This approach allows manufacturers to tailor material characteristics to the specific needs of industrial and automotive applications.
The Importance of Rubber Material Selection
Material selection is one of the earliest and most important decisions in any rubber product development project.The selected elastomer must satisfy performance requirements while remaining compatible with the intended manufacturing process and production volume.Engineers often evaluate multiple material options before selecting the most suitable solution. The objective is not necessarily to choose the most advanced material available, but rather the material that provides the best balance between performance, manufacturability, and cost.Successful material selection typically requires collaboration between design engineers, manufacturing personnel, and material specialists.
Base Elastomers
The base polymer provides the primary performance characteristics of the compound.Common elastomers used in industrial and automotive applications include:
- NR (Natural Rubber)
- SBR (Styrene-Butadiene Rubber)
- EPDM
- NBR
- HNBR
- CR (Neoprene)
- FKM
- Silicone
Selecting the appropriate elastomer is usually driven by:
- Operating temperature range
- Environmental exposure
- Mechanical loading conditions
- Regulatory requirements
- Cost considerations
Each elastomer family offers a different balance of properties, making material selection a critical step in the development process.
Engineering Approach to the Rubber Compounding Process
The rubber compounding process is not simply mixing raw materials. It is a controlled engineering operation that combines material science, process control, and quality management.
Step 1: Requirement Analysis
Before compound development begins, engineers define the performance targets required for the final application.Typical requirements include:
- Hardness
- Tensile strength
- Elongation
- Compression set
- Tear resistance
- Operating temperature
- Chemical exposure
- Regulatory compliance
- Processing compatibility
These requirements establish the framework for compound development.Understanding the Application EnvironmentOne of the most common causes of material-related failures is an incomplete understanding of the service environment.Before a compound is developed, engineers evaluate:
- Operating conditions
- Environmental exposure
- Mechanical stresses
- Service life expectations
- Safety requirements
- Regulatory standards
Even small differences in operating conditions can significantly influence long-term material performance.For this reason, successful compound development begins with a clear understanding of how the component will function in real-world applications.
Step 2: Formulation Development
The development of custom rubber compounds is typically performed by laboratory chemists and polymer specialists.Based on customer requirements, the laboratory team develops and evaluates formulations at a small scale before any production material is manufactured.During this stage:
- Small experimental batches are produced
- Sample test pieces are manufactured
- Customer-required testing is performed
- Results are compared against target specifications
Typical evaluations may include hardness, tensile strength, elongation, aging performance, density, and compression set.Only after the compound successfully meets all required specifications is it approved for production.At that point, the laboratory team releases the formulation and provides the mixing instructions required for full-scale manufacturing.
Step 3: Mixing – The Core of the Rubber Compounding Process
After laboratory approval, production begins.Rubber compounds are commonly mixed using:
- Internal mixers (Banbury-type mixers)
- Industrial rubber mixers

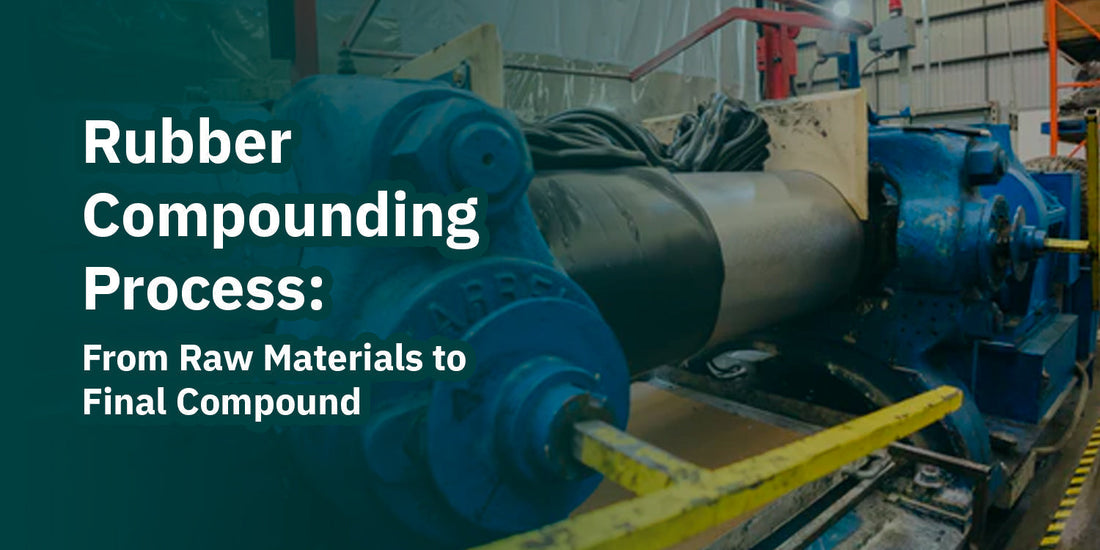

- Two-roll mills
The objective is to achieve a homogeneous distribution of ingredients throughout the compound.A typical production cycle includes:
- Polymer mastication
- Addition of fillers and additives
- Incorporation of processing materials
- Controlled mixing and dispersion
- Cooling and batch preparation
Process Consistency and Manufacturing Control
The mixing stage is one of the most critical operations in rubber manufacturing because it directly affects material consistency.Manufacturers carefully monitor:
- Mixing temperature
- Rotor speed
- Batch size
- Mixing time
- Cooling conditions
Standardized procedures help ensure that production batches remain consistent and repeatable.Sheet-Out and CoolingAfter mixing, the compound is typically:
- Processed through roll mills
- Formed into sheets
- Cooled
- Cut into slabs or strips
- Prepared for downstream operations
Proper cooling prevents premature curing and helps stabilize material characteristics before further processing.
Quality Verification Before Production Release
Before a compound can proceed to the next manufacturing stage, it must pass quality verification.The objective is to confirm that the material meets established production requirements and remains consistent with the original laboratory-approved compound.Quality verification helps minimize process variation and reduces the risk of downstream manufacturing issues.Rheological and Physical TestingTypical release testing may include:
- Rheometer testing
- Hardness
- Tensile strength
- Elongation
- Compression set
- Density
The Role of Rheometry in Rubber Manufacturing
Among all quality control methods used in rubber manufacturing, rheometry is one of the most important.The rheometer evaluates curing behavior and helps verify that each production batch performs consistently.The rheometer software contains predefined acceptance criteria established during compound development.Parameters typically monitored include:
- Scorch time (ts2)
- Optimum cure time (t90)
- Torque characteristics
- Cure consistency
If the material falls within the acceptable limits, the batch is released for further processing.If results fall outside the specified range, the material requires investigation before continuing production.This process helps maintain consistency from batch to batch and ensures reliable manufacturing performance.
From Compound to Finished Product
Once a compound passes quality control testing, it can move to downstream manufacturing operations.Depending on the final application, additional processing steps may be required before molding or assembly.
Calendering OperationsIn many applications, the compound is sent to a calender.The calender uses multiple rollers to produce rubber sheets with controlled thickness.Calendered materials are commonly used in:
- Hose manufacturing
- Reinforced rubber constructions
- Sheet rubber applications
Consistent thickness is important because dimensional variation can affect downstream manufacturing processes and final product performance.
Preforming Operations
For compression molded products, the compound may be processed through a preforming machine.The preformer produces material charges with controlled weight and geometry.These preforms are subsequently used in compression molding operations.Accurate preforming helps ensure:
- Consistent mold filling
- Stable production cycles
- Reduced material waste
- Improved dimensional consistency
Trade-Offs and Constraints in Custom Rubber Compounds
Heat Resistance and Service LifeCertain elastomer families provide greater resistance to elevated temperatures than others.When selecting materials, engineers typically evaluate:
- Continuous operating temperature
- Peak temperature exposure
- Duty cycle
- Expected service life
Choosing a material that exceeds application requirements may unnecessarily increase overall costs.Compression Set vs. Dynamic PerformanceCompounds optimized for low compression set may not always provide the best dynamic fatigue performance.Balancing these properties requires careful consideration during compound development.
Common Challenges in Rubber Compounding
Despite advances in manufacturing technology, rubber compounding continues to present several challenges.Common considerations include:
- Raw material variation
- Batch-to-batch consistency
- Temperature control
- Dispersion quality
- Production scalability
- Process repeatability
Successfully managing these factors requires close collaboration between laboratory personnel, production teams, and quality engineers.
Best Practices in the Rubber Compounding Process
1. Start with the Service Environment
Always define:
- Continuous and peak temperatures
- Environmental exposure
- Static or dynamic loading
- Required service life
Many compound failures originate from incomplete application data.
2. Prioritize Dispersion Quality
Poor dispersion can contribute to:
- Reduced mechanical performance
- Surface defects
- Inconsistent aging behavior
Manufacturers should maintain strict control of:
- Rotor speed
- Fill factor
- Mixing time
- Dump temperature
3. Control Cure Characteristics Carefully
Validate cure behavior under realistic production conditions.Monitor:
- ts2
- t90
- Torque consistency
Maintaining cure consistency helps ensure stable production performance.
4. Validate with Realistic Testing
Laboratory results do not always perfectly predict field performance.Whenever possible:
- Simulate service conditions
- Evaluate aging performance
- Verify long-term durability
Testing under realistic conditions helps reduce risk and improve reliability.Key Takeaways
- The rubber compounding process is a controlled engineering discipline rather than a simple mixing operation.
- Compound development begins with understanding the application environment and performance requirements.
- Laboratory validation plays a critical role before production-scale manufacturing begins.
- Consistent mixing, rheometer testing, and quality control are essential for reliable production.
- Successful custom rubber compounds result from the combination of material selection, process control, and continuous quality verification.
ConclusionIn industrial and automotive applications, rubber components must perform reliably under mechanical stress, environmental exposure, and demanding operating conditions.The foundation of that performance is the rubber compounding process.From laboratory formulation development to production mixing, rheometer verification, calendering, preforming, and final molding preparation, every stage contributes to the quality and consistency of the finished product.By approaching compound development and manufacturing systematically, OEMs and rubber manufacturers can improve product reliability, reduce variability, and support long-term performance in demanding applications.
