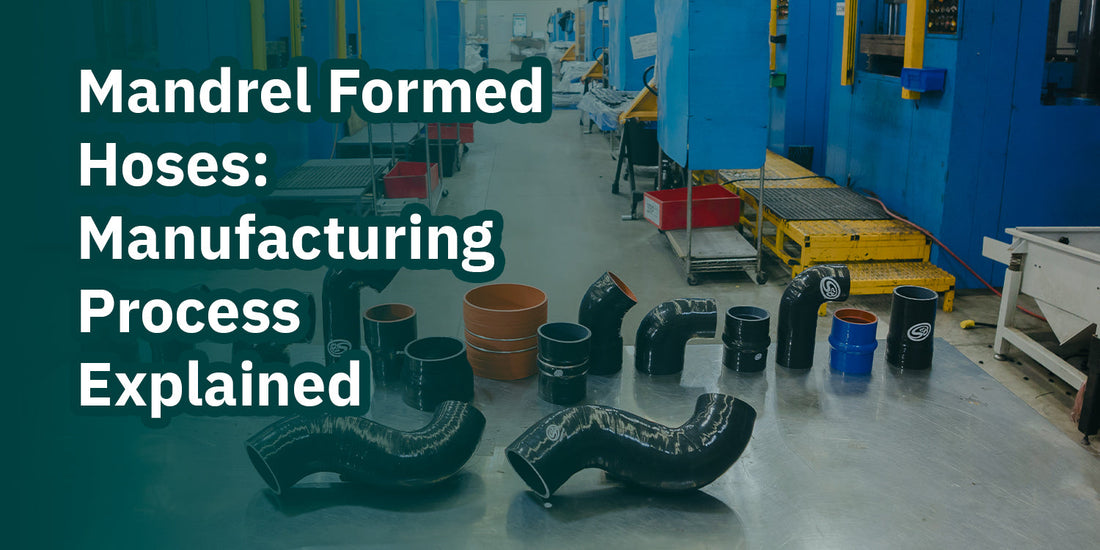

Mandrel Formed Hoses: Manufacturing Process Explained

Many industrial applications depend on hoses that must resist extreme conditions, including high pressure, fluctuating temperatures, and aggressive chemicals. However, not all hoses are created equal. When a system requires a specific geometry, such as tight bends or varying diameters, standard manufacturing methods often fall short. This is where mandrel formed hoses become essential.

As a specialized solution in the fluid and air handling world, mandrel formed hoses provide the structural integrity and precise shaping required for complex machinery. Unlike simple tubing, these components are engineered to fit into tight engine compartments or intricate industrial layouts where a straight hose would kink or fail. Understanding the manufacturing process behind these components is vital for any industrial hose buyer or OEM seeking a reliable hose manufacturer.

Understanding Mandrel Formed Hoses

To understand what makes these components unique, we must first define the core concept. In simple industrial terms, mandrel formed hoses are custom-built rubber tubes manufactured by shaping unvulcanized elastomer materials around a rigid internal tool called a mandrel.

Think of the mandrel as a temporary "skeleton." By building the hose around this pre-shaped core, manufacturers can achieve specific geometries that are impossible with high-speed, continuous extrusion processes. While most garden-variety hoses are simply pushed through a die (extruded), mandrel-formed versions are "built" layer by layer.

Key Differences from Other Methods

Industrial rubber products are generally made using one of three primary methods: extrusion, molding, or mandrel forming.

• Extrusion: This is a continuous process where rubber is forced through a die. It is excellent for long, straight runs of hose but cannot easily accommodate complex curves or changes in internal diameter.
• Molding: This involves pressing rubber into a cavity. While it allows for complex shapes, it often limits the length and internal reinforcement capabilities of the hose.
• Mandrel Forming: This method offers the best of both worlds. It allows for the complex shapes of molding with the structural strength and length options often associated with high-quality industrial tubing.

By using a mandrel, a hose manufacturer can ensure that the internal diameter (ID) remains consistent throughout the entire length of a complex curve. This prevents the "necking" or thinning of the hose walls that often occurs when a straight hose is forced to bend during installation.

Mandrel Formed Hoses Manufacturing Process Explained

The production of these hoses is a meticulous, multi-stage process. Because these components are often destined for mission-critical applications in automotive engines or heavy machinery, the custom rubber manufacturing process must prioritize precision at every step.

Mandrel Preparation

The process begins with the mandrel itself. Depending on the design requirements, mandrels can be made from various materials, including stainless steel, aluminum, or specialized flexible composites.

1. Shape and Dimension: The mandrel is crafted to match the exact internal dimensions and curves required for the final hose.
2. Surface Treatment: Before any rubber is applied, the mandrel is cleaned and often coated with a release agent. This ensures that once the hose is cured (hardened), it can be slid off the mandrel without damaging the interior wall.

Material Selection

The choice of elastomer is perhaps the most critical decision in rubber manufacturing. The material must be chosen based on what will flow through the hose and the environment it will live in.

• Internal Liner: The innermost layer must be chemically compatible with the fluid (e.g., oil, coolant, or air).
• External Cover: The outer layer must resist environmental factors like ozone, UV light, abrasion, and engine heat.

Layering and Reinforcement

A mandrel formed hose is rarely just a single piece of rubber. To handle pressure and prevent bursting, it requires a "sandwich" construction.

• The Inner Tube: A thin layer of unvulcanized rubber is wrapped around the mandrel.
• Reinforcement: This is the "muscle" of the hose. Technicians wrap layers of fabric (such as polyester, aramid, or nylon) or metal wire over the inner tube. The angle at which this reinforcement is applied is mathematically calculated to balance pressure resistance and flexibility.
• The Outer Cover: A final layer of rubber is applied over the reinforcement to protect the structural core.

Wrapping and Consolidation

Once the layers are in place, the assembly is typically wrapped tightly with a specialized tape or shrink film. This process, known as "consolidation," serves a vital purpose: it applies even pressure to the layers, squeezing out any trapped air. Without this step, the hose might develop "blow holes" or delaminate (peel apart) under pressure.

Curing Process (Vulcanization)

This is the "baking" stage. The mandrel, with the layered rubber wrapped around it, is placed into an autoclave (a large industrial pressure cooker).

Under specific heat and pressure settings, the rubber undergoes a chemical change called vulcanization. The polymer chains cross-link, transforming the soft, tacky rubber into a durable, elastic, and heat-resistant material. This is where the hose gains its final mechanical properties.

Mandrel Removal and Finishing

After the curing cycle is complete, the assembly is cooled. Now, the hose manufacturer must remove the rigid mandrel from the inside of the permanent rubber hose.

• Extraction: In many cases, compressed air or water is injected between the mandrel and the hose to "float" the hose off the tool.
• Trimming: The ends of the hose are trimmed to the exact length specified in the engineering drawings.
• Cleaning and Inspection: The interior is flushed to remove any debris, and the exterior is inspected for cosmetic or structural defects.

Advantages of Mandrel Formed Hoses in Industrial Applications

Why do engineers choose mandrel formed hoses over cheaper alternatives? The answer lies in the specific performance benefits that only this manufacturing process can provide.

Ability to Create Complex Geometries

In modern industrial design, space is a premium. Whether it’s a turbocharger system in a truck or a cooling line in a manufacturing plant, hoses often need to "snake" around other components. Mandrel forming allows for:

• 90-degree and 45-degree bends without kinking.
• Multi-plane curves (bending in three dimensions).
• Integrated "humps" or bellows to allow for thermal expansion.

High Durability and Structural Integrity

Because these hoses are built in layers and consolidated under pressure, they possess superior wall strength. The reinforcement layers are perfectly positioned, ensuring the hose won't lose its shape or burst when the system reaches peak operating pressure.

Resistance to Extreme Conditions

By selecting specific high-performance elastomers during the manufacturing stage, these hoses can withstand environments that would destroy standard automotive parts. This includes resistance to:

• High-temperature "soak" under hoods.
• Vibration and mechanical stress.
• Corrosive chemicals and oils.

Customization for Specific Systems

Unlike "off-the-shelf" tubing, these hoses are designed for a specific purpose. This means they often include features like integrated fittings or protective sleeves, reducing the number of leak points in a system.

Materials Commonly Used by Hose Manufacturers

Selecting the right material is essential for the longevity of an industrial hose. Below are the most common elastomers used in the mandrel forming process.

Selecting the material is not just about the fluid inside; it’s about the environment outside. For example, a hose might carry harmless water (requiring EPDM), but if it sits next to a leaking oil pipe, the exterior might need a Nitrile cover to prevent swelling and failure.

Where Mandrel Formed Hoses Are Used

The versatility of mandrel formed hoses makes them a staple across various sectors. Wherever fluid or air needs to move through a restricted space, you will likely find these components.

Automotive Applications

The automotive industry is the largest consumer of mandrel-built hoses. Modern engines are packed with sensors and auxiliary systems, leaving little room for straight pipes.

• Coolant Hoses: Transporting antifreeze between the engine and radiator.
• Turbo and Air Intake: Handling high-pressure, high-temperature air for forced induction systems.
• Heater Hoses: Providing warmth to the vehicle cabin.

Heavy Equipment and Industrial Machinery

Construction and agricultural machinery operate in harsh environments where vibration is constant.

• Fluid Transfer: Moving hydraulic fluids or lubricants through articulated joints.
• Air Handling: Managing air intake for large diesel engines in dust-heavy environments.

Marine and Outdoor Equipment

Saltwater and UV exposure are "hose killers." Mandrel-built hoses used in marine engines are designed with heavy-duty covers to resist the corrosive effects of the ocean.

• Wet Exhaust Systems: Carrying hot exhaust gases and cooling water.
• Bilge and Scupper Lines: Ensuring moisture-resistant drainage.

Chemical and Process Industries

In chemical plants, a hose failure can be catastrophic. Mandrel-formed hoses allow for the use of high-performance liners (like FKM) reinforced with heavy-duty textiles to safely transport aggressive fluids under pressure.

Mandrel Formed vs. Other Hose Manufacturing Methods

When sourcing components, OEMs must decide which process fits their budget and performance needs. Here is a comparison to help guide the decision-making process.

For most high-performance applications, mandrel formed hoses provide the best balance of structural strength and geometric flexibility.

Key Considerations When Working with a Hose Manufacturer

Sourcing custom rubber manufacturing services requires a clear understanding of your system's requirements. To get the best results, OEMs should focus on the following areas:

Design Requirements

Provide the manufacturer with a detailed 3D model or a physical template.

• Shape Complexity: Are there tight radii that might cause flow restriction?
• Tolerances: How much variation can the system handle at the connection points?
• Integration: Will the hose require specialized clamps or quick-connect fittings?

Material Selection

Be transparent about the operating environment.

• Environmental Conditions: Will the hose be exposed to salt spray, sunlight, or engine degreasers?
• Performance Requirements: What is the peak pressure? What is the maximum temperature it will see during a "worst-case scenario"?

Manufacturing Capabilities

Not every hose manufacturer has the equipment to handle large-scale mandrel forming. Look for a partner with:

• Experience in your specific industry (e.g., automotive vs. chemical).
• The ability to handle the specific elastomers (like FKM or Silicone) your project requires.
• In-house tooling capabilities to create custom mandrels quickly.

Quality and Testing

High-quality industrial hose production should be backed by rigorous testing.

• Pressure Testing: Ensuring the hose can handle several times its rated working pressure.
• Dimensional Inspection: Verifying that the internal diameter and bend angles match the blueprint.
• Performance Validation: Testing for ozone resistance or material degradation over time.

Conclusion

In the world of industrial engineering, the "veins and arteries" of a machine—the hoses—are often overlooked until they fail. Mandrel formed hoses offer a specialized solution for systems where standard tubing simply cannot perform. By utilizing a rigid internal core during the rubber manufacturing process, manufacturers can create durable, complex, and high-strength components tailored to specific industrial needs.

From the initial mandrel preparation to the final vulcanization in an autoclave, the process ensures that each hose can withstand the rigors of high-pressure and high-temperature environments. Whether you are in the automotive, marine, or chemical processing industry, choosing the right industrial hose is a matter of safety and efficiency.

When performance is non-negotiable, mandrel formed hoses stand out as the premier choice for OEMs worldwide. By understanding the complexity and precision involved in their creation, businesses can make more informed decisions when partnering with a hose manufacturer for their next project.
