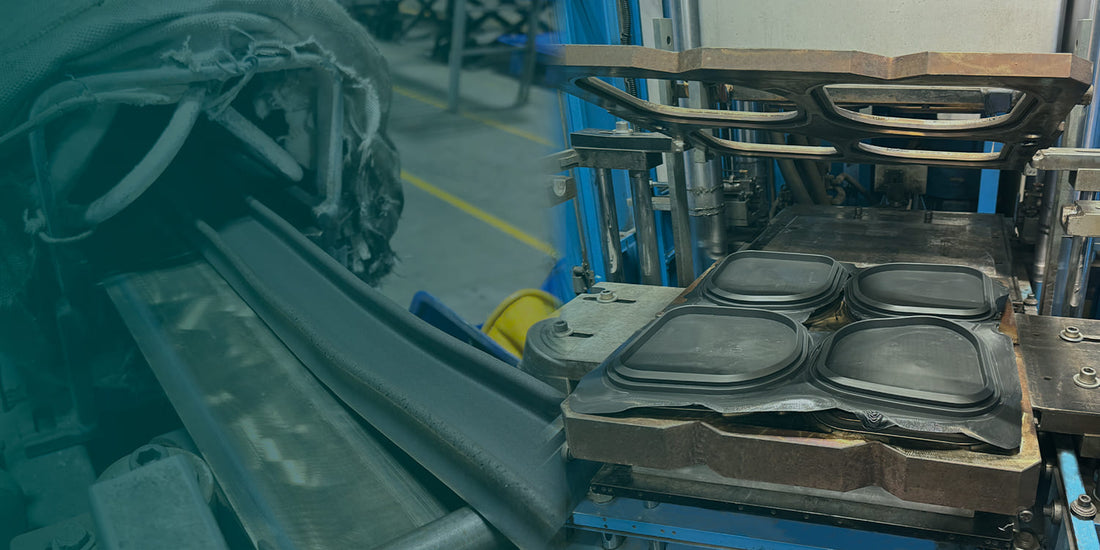

How Custom Window Seals Are Made: Extrusion vs. Compression Molding

Custom window seals can be manufactured through rubber extrusion or compression molding, depending on their geometry. Extrusion is generally suited to continuous profiles with a consistent cross-section, while compression molding is more suitable for discrete or complex three-dimensional seal geometries. Understanding how custom window seals are made is critical for ensuring long-term performance and reliability.

How Are Custom Window Seals Designed and Manufactured?

Custom window seals are engineered elastomeric components. Their specific geometry is primarily determined by the physical interface they need to seal. Because every industrial and automotive application is unique, there is no single manufacturing method that works for every seal.

Depending on the design, an elastomeric seal may be manufactured through rubber extrusion, which is ideal for continuous profiles, or rubber compression molding, which handles discrete or highly complex geometries.

The most important rule in rubber component design is that the manufacturing process should follow the geometry and functional requirements of the seal—not the other way around. The standard sequence for developing these components follows a logical path:

 Application → Seal geometry → Process selection → Tooling → Manufacturing → Validation.

Understanding Custom Window Seals

A custom window seal is a manufactured rubber component designed to create a controlled interface between a window, glass pane, panel, frame, or structural enclosure.

These components perform several critical functions in an industrial assembly:

• Sealing against water, air, and environmental elements
• Reducing movement and dampening vibration
• Preventing dust or external contaminants from entering a cabin or enclosure
• Protecting mating surfaces from friction and wear
• Compensating for dimensional variation and manufacturing tolerances
• Providing mechanical retention or physical cushioning

Why Window Seal Geometry Is Important

The cross-section or three-dimensional shape of a rubber profile dictates how it performs in the field. The geometry determines how the seal contacts the mating surface, how much it compresses under load, and how it retains itself within a frame.

Geometry also dictates how the seal accommodates movement and maintains consistent sealing pressure over time. Because the shape is so critical to function, this geometry ultimately dictates which manufacturing process will be most successful.

Key Design Considerations for Custom Window Seals

Before evaluating the differences between extrusion and compression molding, it is essential to understand what physical traits are being designed into the component.

Cross-Sectional Geometry

The core of seal design lies in the profile shape. Designers must carefully calculate the size and angle of contact surfaces, the thickness of sealing lips, and the placement of retention features. Internal channels and designated compression zones are often designed into the cross-section to allow the rubber to displace safely under load.

Compression and Sealing Requirements

A rubber seal must generally deform enough to create full contact with mating surfaces without being excessively compressed. Designers must balance the percentage of compression, the resulting contact pressure, and the material's ability to recover its shape. The required installation force is also heavily influenced by how the seal is designed to compress.

Mating Components and Installation

The physical environment surrounding the seal cannot be ignored. Glass thickness, frame geometry, and groove dimensions all dictate the maximum and minimum size of the seal. Panel thickness and the final assembly method (such as press-fit or adhesive-backed) will also drive specific design choices.

Environmental Requirements

Operating environments dictate the physical demands placed on the seal. Temperature extremes, prolonged UV exposure, moisture, atmospheric ozone, and exposure to industrial chemicals all influence the material choice, which in turn influences how the seal must be designed to accommodate that specific material's behavior.

Custom Window Seals Made Through Rubber Extrusion

Rubber extrusion is a continuous manufacturing process that creates a profile with a consistent cross-sectional geometry. It is one of the most common methods for producing industrial rubber components.

The basic process involves feeding an uncured rubber compound into an extruder. A rotating screw pushes the material through a specifically shaped steel die. After the profile is formed, it passes through a continuous curing oven for vulcanization, followed by a cooling sequence to stabilize the finished profile.

Designing the Extruded Profile

In extrusion, the die reproduces the desired cross-sectional geometry. However, rubber behaves uniquely when pushed through a die. Designers must consider profile symmetry and maintain consistent wall thickness wherever possible to prevent distortion. Sharp geometry transitions, excessively thin sections, and highly complex features can cause dimensional stability issues during the curing process.

Why Extrusion Works Well for Continuous Window Seals

Extrusion is particularly appropriate when the cross-section of the component remains relatively constant. It is the ideal choice when long lengths are required and the seal follows a continuous path around a frame. The process is highly efficient when the extruded rubber profiles can be cut to length or formed into a loop afterward.

Common examples include:

• Window channels for sliding glass
• Edge seals on paneling
• Continuous glazing profiles
• Trim seals for automotive doors

Secondary Operations After Extrusion

Extrusion does not necessarily produce the final, ready-to-install configuration. Depending on the design, an extruded profile may undergo secondary operations. These can include cutting to specific lengths, splicing ends together to form an O-ring or continuous gasket, joining corners, forming, or punching holes for mechanical fasteners.

Custom Window Seals Made Through Compression Molding

While extrusion pushes material through a die, rubber compression molding forms the material inside a closed cavity. This process is utilized when the required geometry cannot be maintained in a continuous profile.

The basic process involves placing a precisely weighed rubber preform into an open mold cavity. The mold is closed under immense heat and pressure, forcing the rubber to fill the cavity. After vulcanization is complete, the mold is opened, and the finished seal is demolded.

When Compression Molding Is Suitable

Compression molding is highly suitable for non-continuous seals, fully three-dimensional geometries, and parts requiring complex molded features (such as integrated mounting pegs or varying thicknesses). When a seal has a defined shape that cannot be maintained as a linear extruded profile, molding is usually the required path. It is not necessarily "better" than extrusion, but it is often the more appropriate choice for complex configurations.

Designing the Seal for Compression Molding

Designing molded rubber seals requires careful attention to the mold itself. Engineers must account for the parting line (where the two halves of the mold meet) and draft angles to allow for easy part removal. Designers must also consider where flash (excess rubber) will occur, specify appropriate radii to avoid sharp internal mold corners, manage wall thickness, and avoid undercuts that complicate the demolding process.

Which Process Is Better for Custom Window Seals?

Neither process is universally better. The appropriate process depends primarily on the seal's geometry, continuity, functional requirements, and production design.

When Should You Choose Extrusion or Compression Molding?

Translating technical comparisons into practical decisions requires looking at the end-use of the seal.

Choose Extrusion When:

• The profile is continuous and unbroken.
• The cross-section remains consistent throughout the entire length.
• Long, spooled lengths are required for assembly.
• The seal follows a continuous linear or sweeping path.
• Secondary cutting, splicing, or forming can effectively create the final configuration.

Consider Compression Molding When:

• The component has a strictly defined three-dimensional shape.
• The seal is not continuous (e.g., a specific corner piece).
• The geometry changes significantly throughout the part.
• Specific molded features, like mounting bosses or varying lip thicknesses, are required.
• The final component is better represented by a closed mold cavity than a continuous profile.

Designing Custom Window Seals for Manufacturability

Design for Manufacturability (DFM) ensures that a part can be produced consistently and efficiently. The same functional requirement can sometimes be achieved through different geometries, but the geometry may make one manufacturing method significantly more practical than another.

Extrusion Design Considerations

For extruded components, DFM focuses heavily on cross-sectional consistency. Maintaining even wall thickness prevents the profile from warping as it cools. Designers should avoid sharp transitions and excessively thin features that can tear during extrusion, ultimately reducing profile complexity to ensure dimensional stability.

Compression Molding Design Considerations

For compression molded rubber, DFM centers around the mold cavity. Determining the location of the parting line is critical, as it affects both cosmetics and sealing performance. Designers must include proper draft angles, account for flash removal, incorporate smooth radii to ensure the rubber flows properly, and ensure the part can survive demolding without tearing.

How Material Selection Fits Into Custom Window Seal Design

Material selection is influenced primarily by the operating environment, while the manufacturing process determines how that selected compound is transformed into the final component.

Common elastomers like EPDM are frequently chosen for their excellent resistance to weather, UV, and ozone, making them ideal for outdoor window applications. Silicone may be selected for extreme temperature stability. The fundamental development flow remains the same: application requirements drive the material requirements, which dictate the part geometry, ultimately leading to the correct manufacturing process.

How Manufacturing Method Can Affect Window Seal Quality

Quality control looks different depending on the chosen production method. Quality requirements should always be established during the initial design phase, rather than merely inspected after manufacturing.

Extrusion Quality Considerations:

• Maintaining strict profile dimensions over long runs
• Cross-sectional consistency and preventing profile distortion
• Surface quality as the rubber exits the die
• Cure consistency throughout continuous lengths

Compression Molding Quality Considerations:

• Overall part dimensions and shrinkage
• Managing and safely removing flash
• Parting line mismatch or variations
• Complete filling of the molded geometry
• Consistent surface finish and cure consistency

Where Are Custom Window Seals Used?

Automotive

In the automotive sector, elastomeric seals are critical for vehicle windows, doors, body openings, and glass interfaces. They provide weatherproofing and wind noise reduction in highly demanding environments.

Industrial

Industrial applications rely heavily on robust sealing solutions. Machinery enclosures, equipment panels, and heavy-duty industrial windows require seals that can withstand factory environments, vibration, and occasional chemical exposure.

Architectural

Commercial and residential construction utilizes these components for fixed windows, dynamic glass systems, and large building enclosures to ensure energy efficiency and weather resistance.

Marine and Transportation

Marine vessels, trains, and mass transit vehicles require heavy-duty window seals, access panel gaskets, and enclosure protection to survive constant exposure to moisture, salt, and dynamic physical loads.

The Custom Window Seal Development Process

A structured development process ensures that the transition from concept to physical part is seamless.

1. Define application requirements: Understand the physical and environmental demands.
2. Design sealing geometry: Create the shape that will meet the application needs.
3. Evaluate extrusion vs. compression molding: Let the geometry dictate the process.
4. Design tooling: Engineer the extrusion die or the mold cavity.
5. Produce initial components: Run prototypes or first-article inspections.
6. Validate fit and performance: Test the seal in its actual application.
7. Refine the design if necessary: Make small adjustments to tooling or geometry.
8. Establish the final manufacturing process: Lock in production parameters.

Common Mistakes When Designing Custom Window Seals

Choosing the Process Before Designing the Part

One of the most frequent errors is deciding to use extrusion or molding before the geometry is finalized. The functional geometry must always drive process selection.

Ignoring Compression Requirements

Designing a seal without calculating how much force is required to compress it can lead to assembly failures or crushed glass panels.

Designing Excessively Complex Extrusion Profiles

Overcomplicating an extruded profile with varying wall thicknesses and intricate internal webs often leads to distortion during the curing process.

Ignoring Parting Lines in Molded Seals

Placing a parting line directly on the primary sealing surface of a compression-molded part can create leak paths and compromise the seal's integrity.

Using Tight Tolerances Without Considering Rubber Behavior

Elastomers expand and contract significantly with temperature changes. Applying strict metal-like tolerances to rubber components often results in unnecessary manufacturing rejections.

Focusing Only on the Material

Material alone cannot compensate for poor geometry or an inappropriate manufacturing design. Even the highest-grade elastomer will fail if the cross-section is poorly engineered.

Choosing the Right Manufacturing Process for Custom Window Seals

The design of a custom window seal and its manufacturing process are closely connected. Extrusion is generally well suited to continuous profiles with consistent cross-sections, providing excellent efficiency for linear applications. Conversely, compression molding can provide greater flexibility for discrete or complex three-dimensional geometries that cannot be pushed through a die.

By following the proper sequence—understanding the application, designing the geometry, selecting the appropriate process, engineering the tooling, and validating the final part—engineers can ensure long-term reliability. Ultimately, understanding exactly how custom window seals are made guarantees that the final component will function exactly as intended in the field.
